20KV 20KA Surge Protector Surge Arrester Protective Device SPD LED SPD Surge Protector 20ka SPD Light

20KV 20KA Surge Protector Surge Arrester Protective Device SPD LED SPD Surge Protector 20ka SPD Light


Key attributes

Type
Singal protection
Rated Voltage
90-350v
Max Discharge current
10
Number of Pole
2
Nominal Discharge current
5
Place of Origin
Guangdong, China
Brand Name
ZELV
Model Number
ZYS-P20SD
Rated working voltage
100-277V
Maximum working voltage
320V
Rated load current/IL(A)
10A
Nominal discharge current/In(kA)
10KA
Maximum discharge current/Imax(kA)
20KA
Surge impulse voltage/Uoc
20KV
Voltage protection level/Up(V)
L-G/PE N-G/PE≤2.0KV
power supply system
TN
Waterproof grade
IP67
work environment
-40℃~+85℃

Packaging and delivery

Packaging Details
Carton Package

Selling Units:
Single item


Single package size:
25X15X10 cm


Single gross weight:
1.000 kg


Product Description
Overview

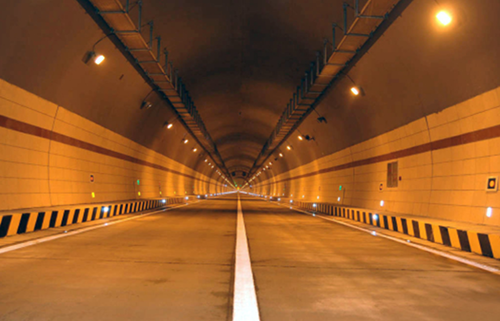

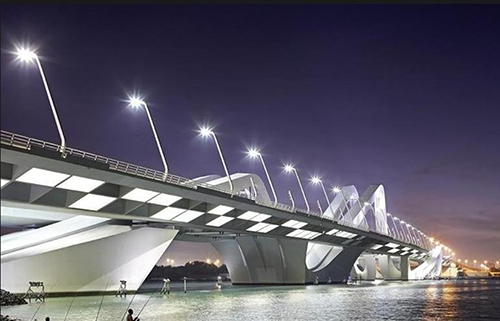

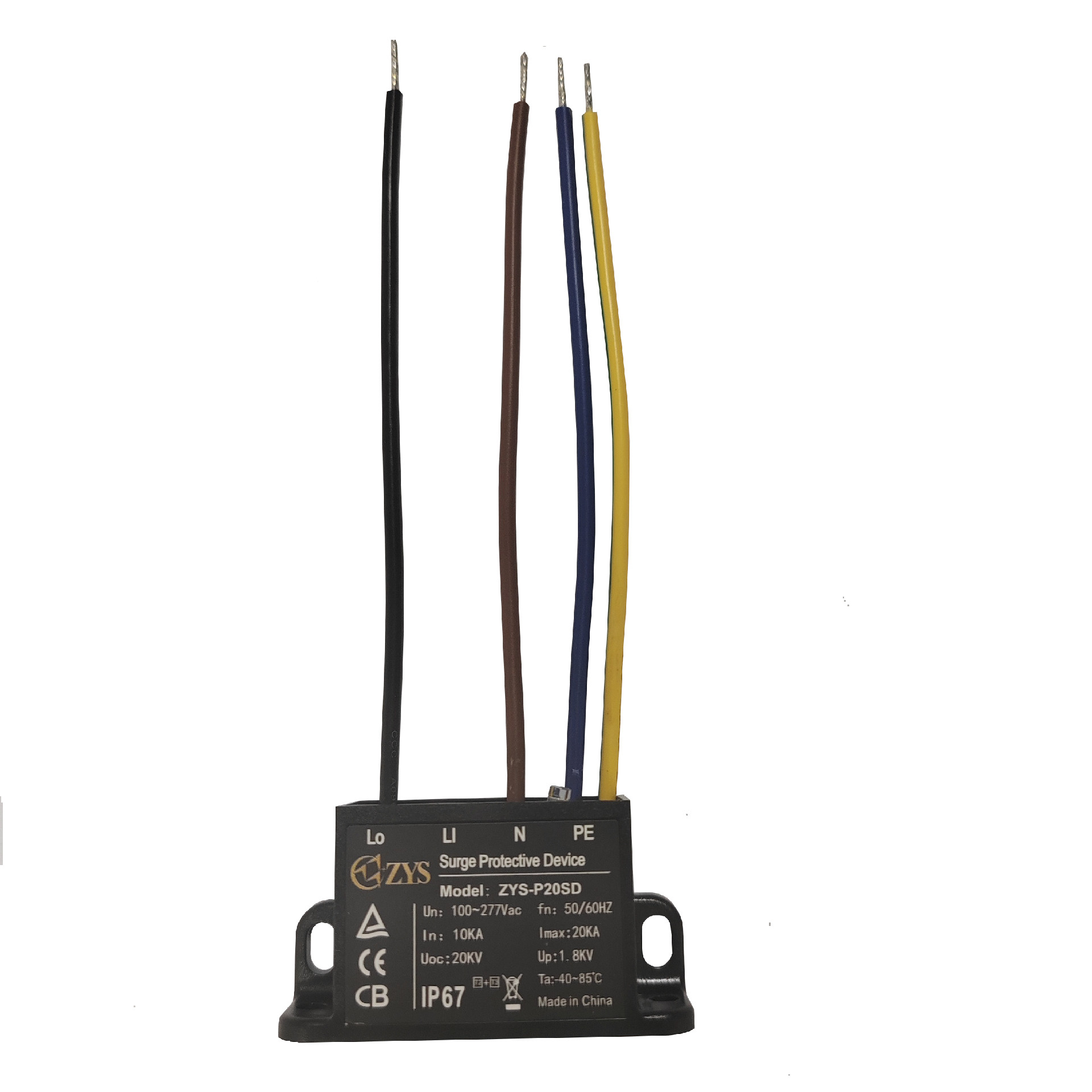

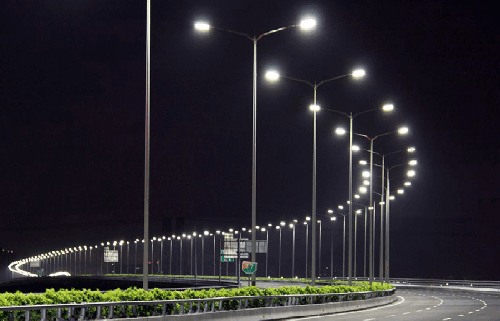

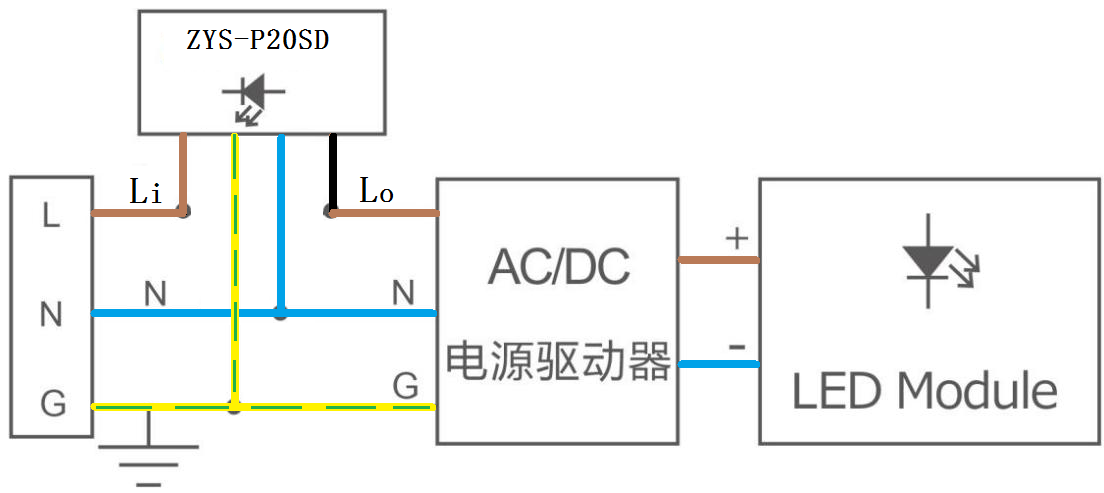

ZYS-P20SD series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.
Product Paramenters
Applicable to class I or II lamps
Built in protection mode: L-N, L-PE, N-PE
Built in thermal separation function for higher security
Parallel isolation design, excellent protection performance
Excellent surge resistance and very low residual voltage
CCC 1*1.0mm² electronic wire
Small and convenient for embedded installation
IP67 dust proof and waterproof grade

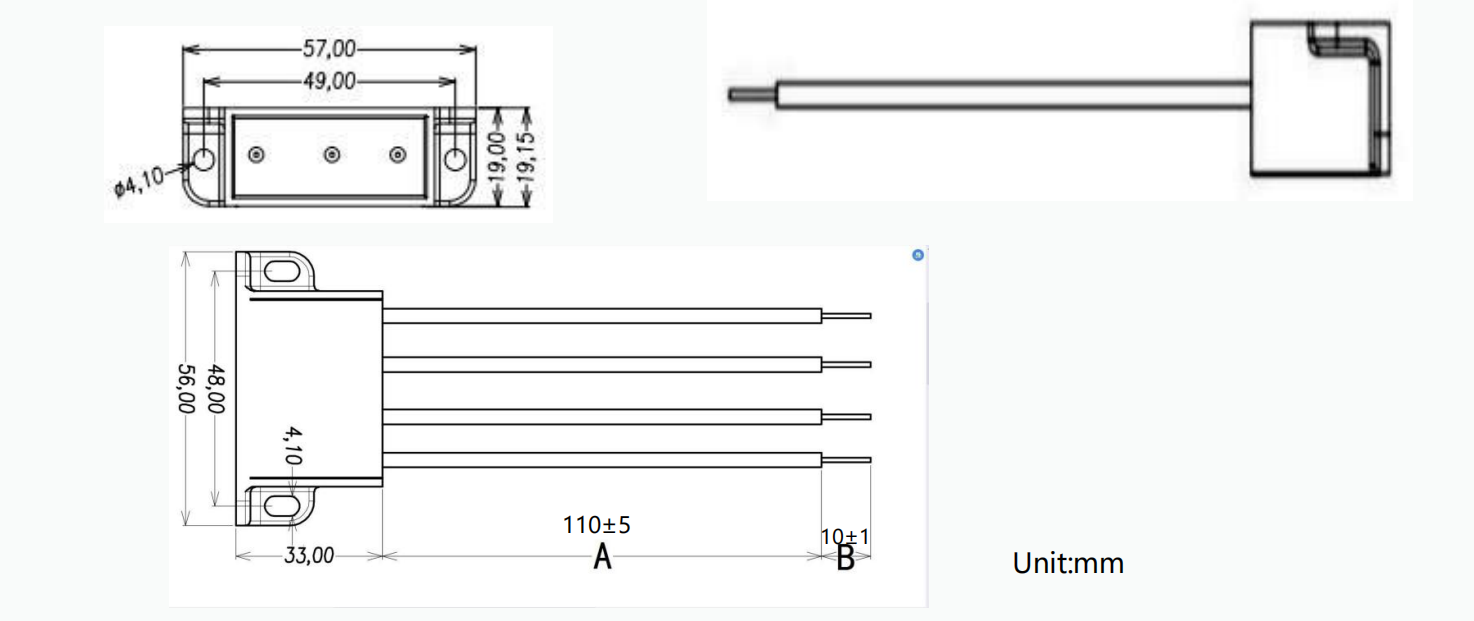

Specification
Rated working voltage/Un(VAC)
100-277V
Maximum continuous working
voltage/MCOV/Uc(VAC)
320V
Rated load current/IL(A)
5A
Nominal discharge current/In(kA)2
5KA
Maximum discharge current/Imax(kA)
10KA
Surge impulse voltage/Uoc(KV)
10KV
Voltage protection level/Up(V)
L-N/L-G/PE,N-G/PE≤1.5KV
power supply system
TN
Waterproof grade
IP67
work environment
-40℃~+85℃
