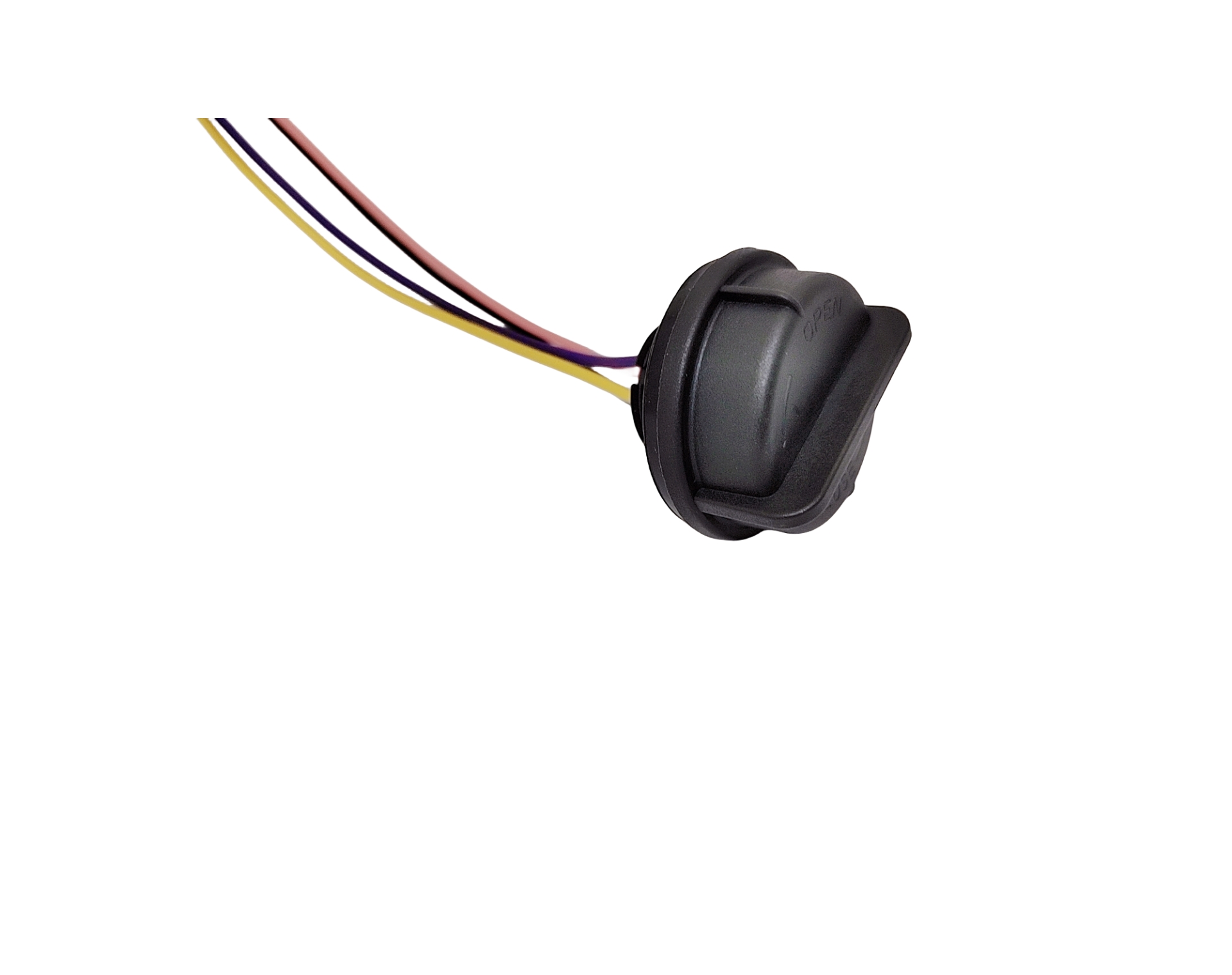

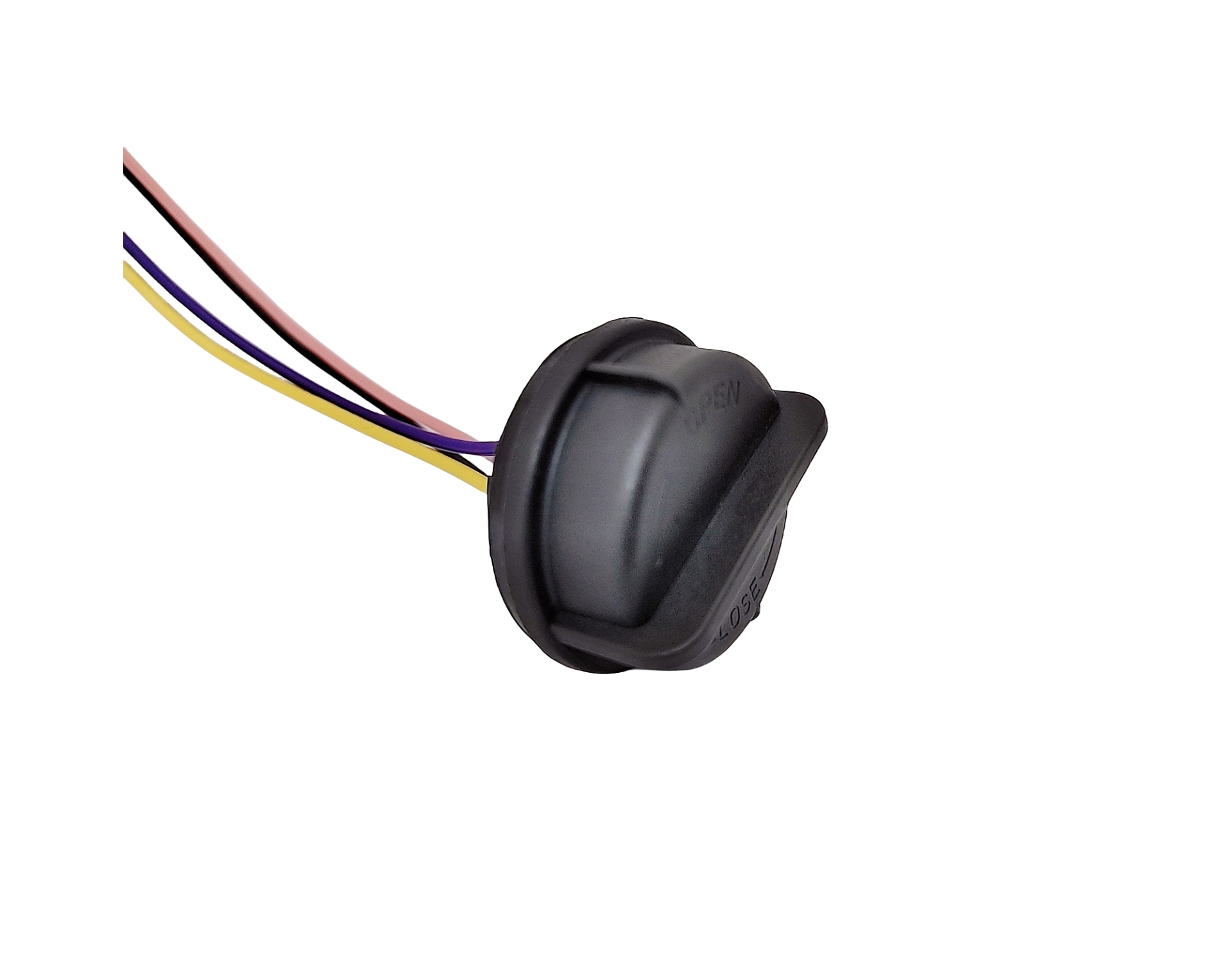

Protocol Zhaga Receptacle Socket for Street Light Switch Dimming

Key attributes

Type

Singal protection

Rated Voltage

90-350v

Max Discharge current

10 A

Place of Origin

Guangdong, China

Brand Name

ZELV

Model Number

ZYS-07D

microwave frequency

5.8GHz±75MHz

microwave power

<0.3mW

Detection range

25%/50%/75%/100%

INPUT VOLTAGE

10.5-15V DC

current

<30mA

Dimming signal

DIM 0-10V

standby power

<30mA current consumption

Connection method

Zhaga interface

operation temperature

-20°C~+60°C

IP Rating

IP65

Packaging and delivery

Selling Units:

Single item

Single package size:

15X10X5 cm

Single gross weight:

2.000 kg

Product Description

Overview

1. This product should be installed by a professional electrician, and the power should be cut off before installation and wiring.
2. Please read this manual carefully before using this product and keep it in a safe place.
3. We reserve the right to correct inaccurate descriptions, images and specifications.
4. Do not disassemble or adjust this product without permission. Otherwise, all agreed terms will become invalid immediately.
5. Product specifications and parameter optimization may not be notified in advance.

Product Paramenters

* Microwave induction, maximum installation height 15Meters
* Zhaga 18 standard interface
* Three-stage dimming; light sensing priority function
* Remote control settings

Specification

microwave frequency	5.8GHz±75MHz
microwave power	<0.3mW
Detection range	25%/50%/75%/100%
Daylight threshold	2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Waiting brightness	10%/20%/30%/50%
Waiting time	0s/10s/30s/1min/5min/10min/30min/60min/+∞
Delay time	L-N/L-G/PE,N-G/PE≤1.5KV
power supply system	TN
Waterproof grade	IP67
work environment	-40℃~+85℃

Company Introduction

01 门头.png

03 办公室.jpg

Dongguan Zelv Electronic Technology Co., Ltd., a national high-tech enterprise headquartered in Dongguan, China, is a pioneering leader in solar energy innovation. Specializing in the design and production of advanced solar cleaning robots, solar lifters, solar mounting systems and LED lighting accessories , we are committed to driving global sustainability through cutting-edge technology.

WorkShop
