7PIN Dimming LED Light Base NEMA Socket ANSI C136.40 Photocell Base

7PIN Dimming LED Light Base NEMA Socket ANSI C136.40 Photocell Base


Key attributes

Place of Origin
Guangdong, China
Brand Name
ZELV
Model Number
ZYS-07B
Product Name
NEMA Photo control
Rated Voltage
0-480Vac
Rated Load Power
AWG#18: 10A(5 PIN/7 PIN) AWG#14: 15A
Color
Black
Operating Temperature
-40℃~80℃
Waterproof Grade
IP65
Rated Frequency
50/60Hz
Lead Length
280mm
Size
66.2mm*35.2mm
Relative Humidity
0~99%Rh

Packaging and delivery

Selling Units:
Single item
Single package size:
25X18X11 cm
Single gross weight:
1.000 kg


Product Description
Overview

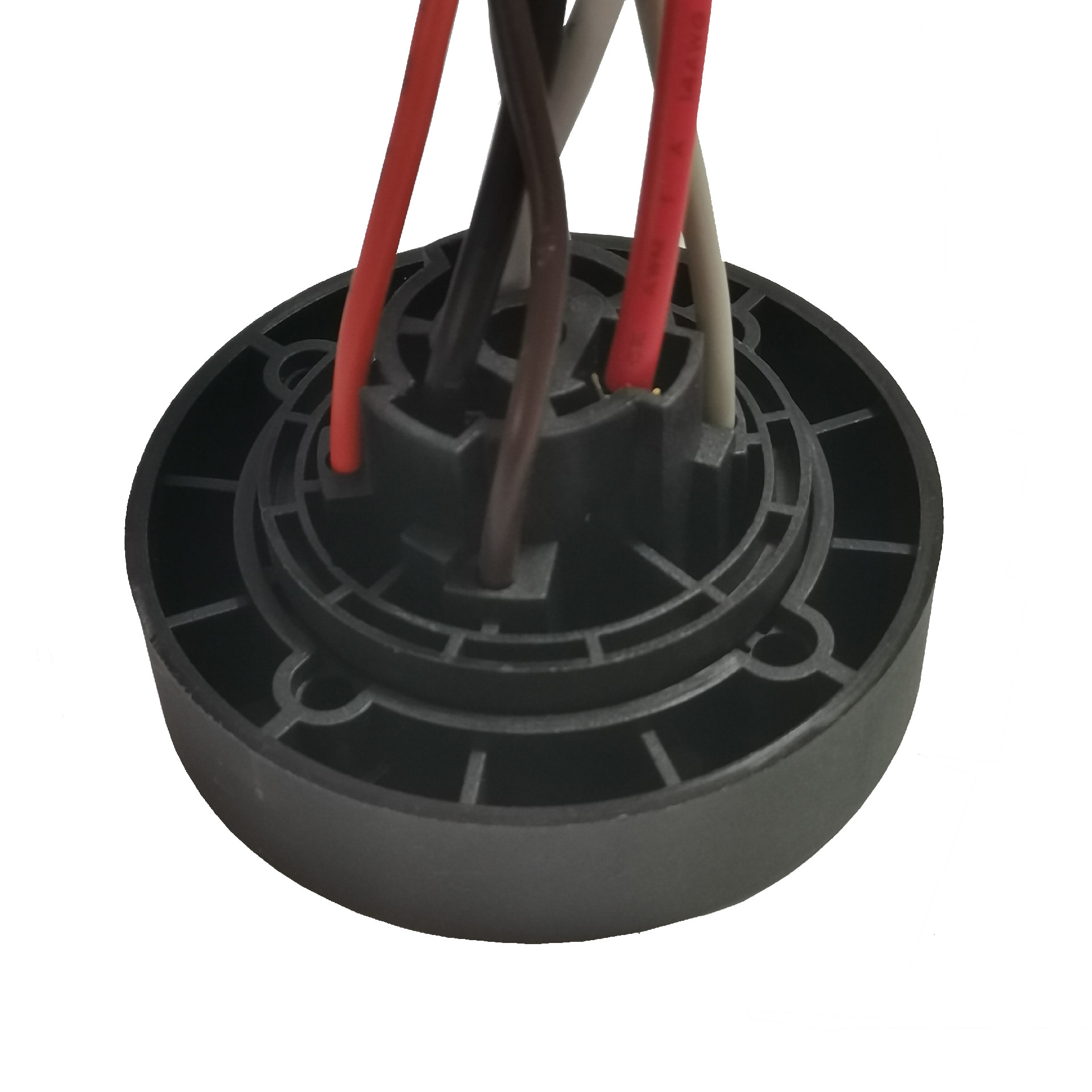

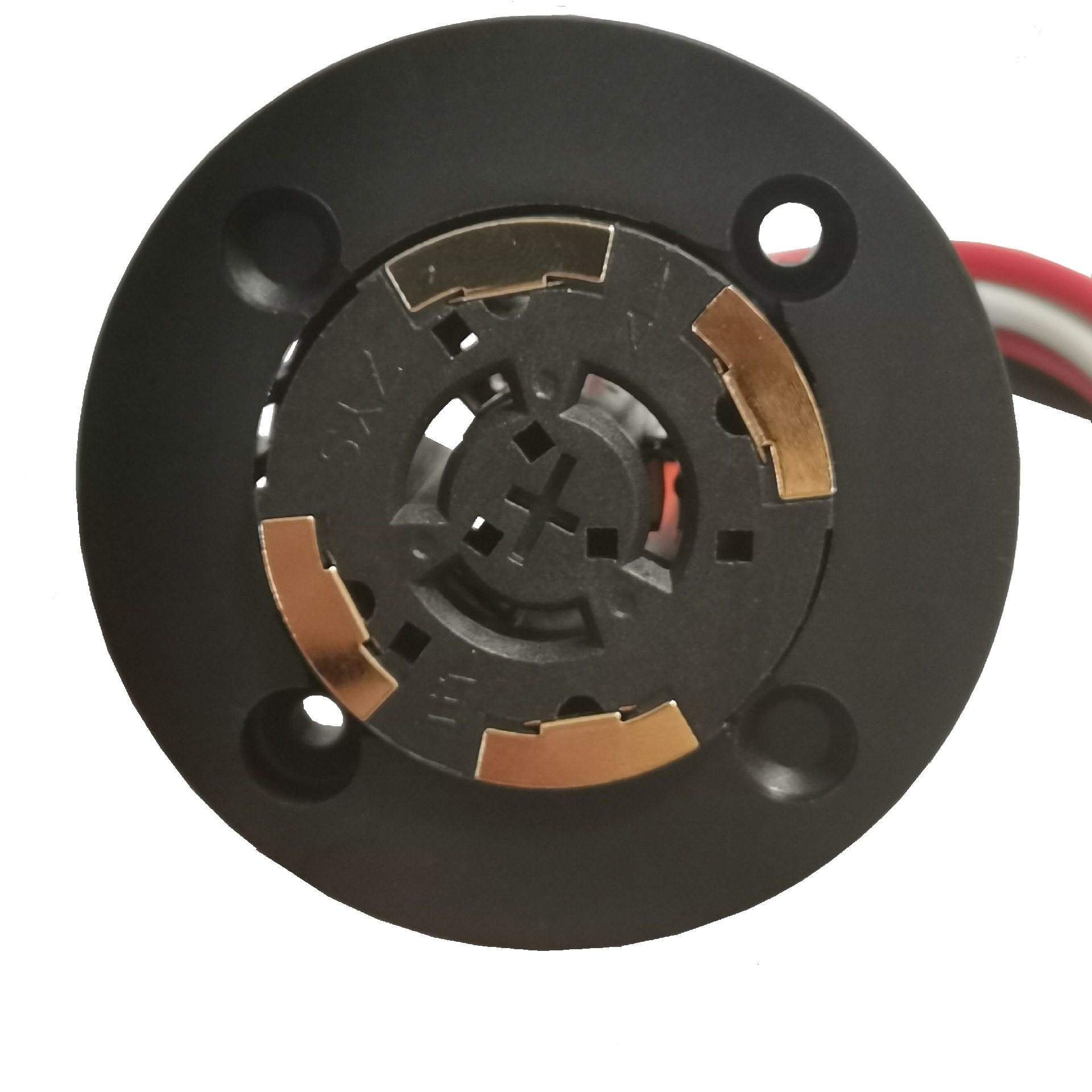

ZYS-3/5/7 NEMA (three-wire/five-wire/seven-wire) socket is a connector socket comply with ANSI C136.41 standard, providing
reliable outdoor electromechanical connections. It can be twisted and locked to match outdoor street lamp, courtyard lamp and other lighting controllers.In order to solve the problem of how to install the light control at the best angle position, the products we developed can be fixed by screws after the street light installer chooses the best orientation. It is simple, convenient and fast to connect the external circuit of lamps fixtures.
Product Paramenters
* Comply with ANSI C136.41-2013
Fireproof and UV resistant, suitable for various outdoor lamps fixtures.
Convenient / reliable / durable twist-lock connection

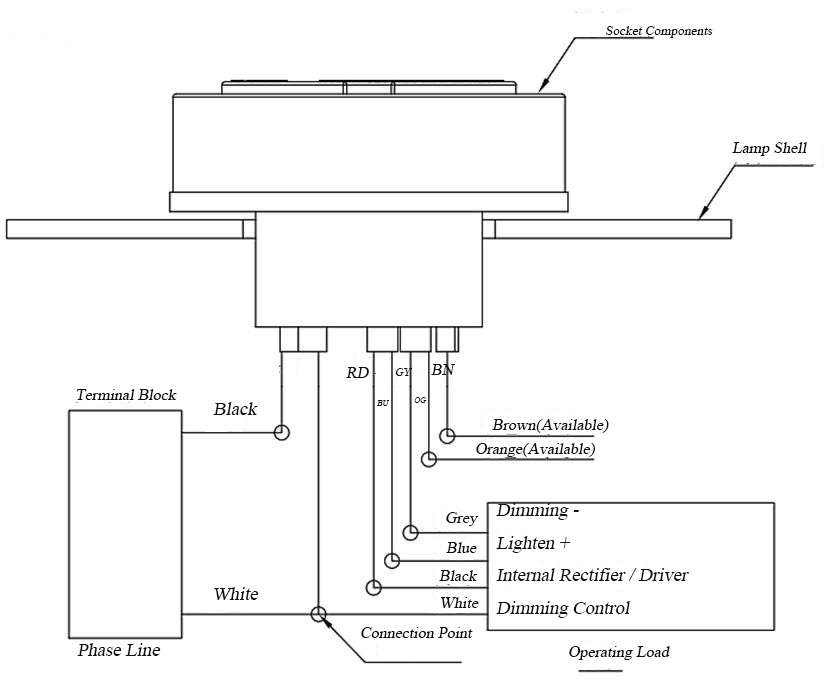

Preset wires for easy integration into the lamp
The length of the wire can be customized, making it easier to adapt to different lamps

Specification
Product Name
NEMA Socket Receptacle
Rated Voltage
0-480Vac
Rated load
AWG#18: 10A(5 PIN/7 PIN) AWG#14: 15A
Color
Black
Operating Temperature
-40℃~80℃
Waterproof Grade
IP65
Rated Frequency
50/60Hz
Lead Length
280mm

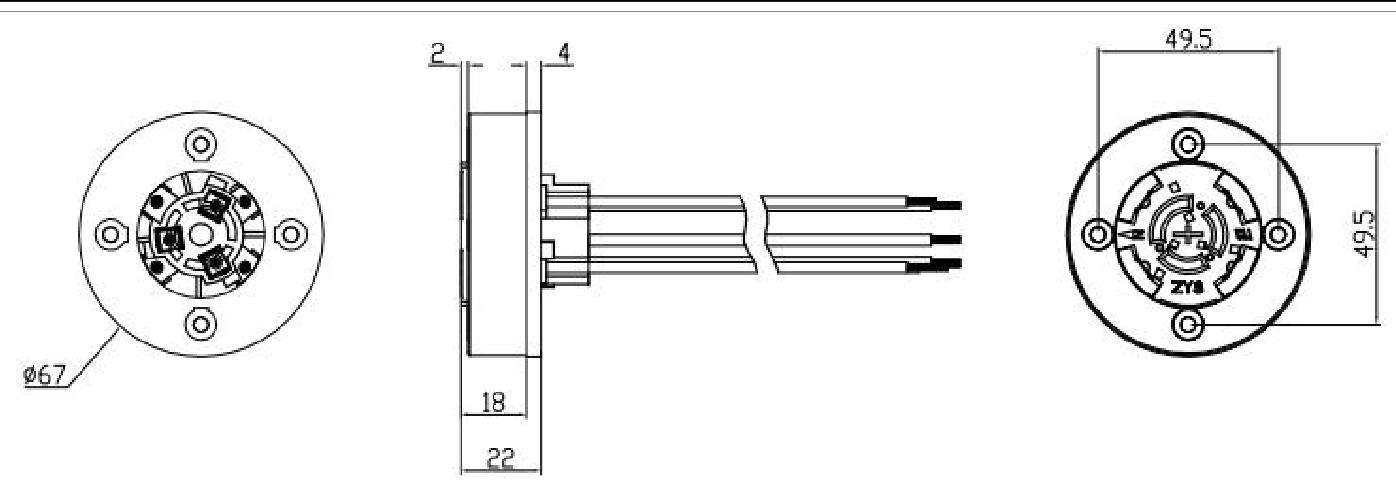

Size
66.2mm*35.2mm
Relative Humidity
0~99%Rh
