Zelv X3 SIngle Head Brush Solar Panel Cleaning Brush

Zelv X3 SIngle Head Brush Solar Panel Cleaning Brush


Zelv X3 Solar Cleaning Brush Features:


1. Telescopic rod

lMaterial:Aluminum alloy

lLength (M):3.5M/ 5.5M/ 7.5M

lNumber of stanzas (section):3/4/5

lDiameter (MM):36/39.5/43

lWall thickness:1mm

lNumber of stanzas (section):3/4/5



2. DC motor

lTotal power: 300W

lVoltage: DC24V

lRotate speed: 350r/min



3. Brush head

lBrush diameter:32CM

lCleaning width :65CM

lUsage Time: Over 5 years

lMaterial:Nylon wire

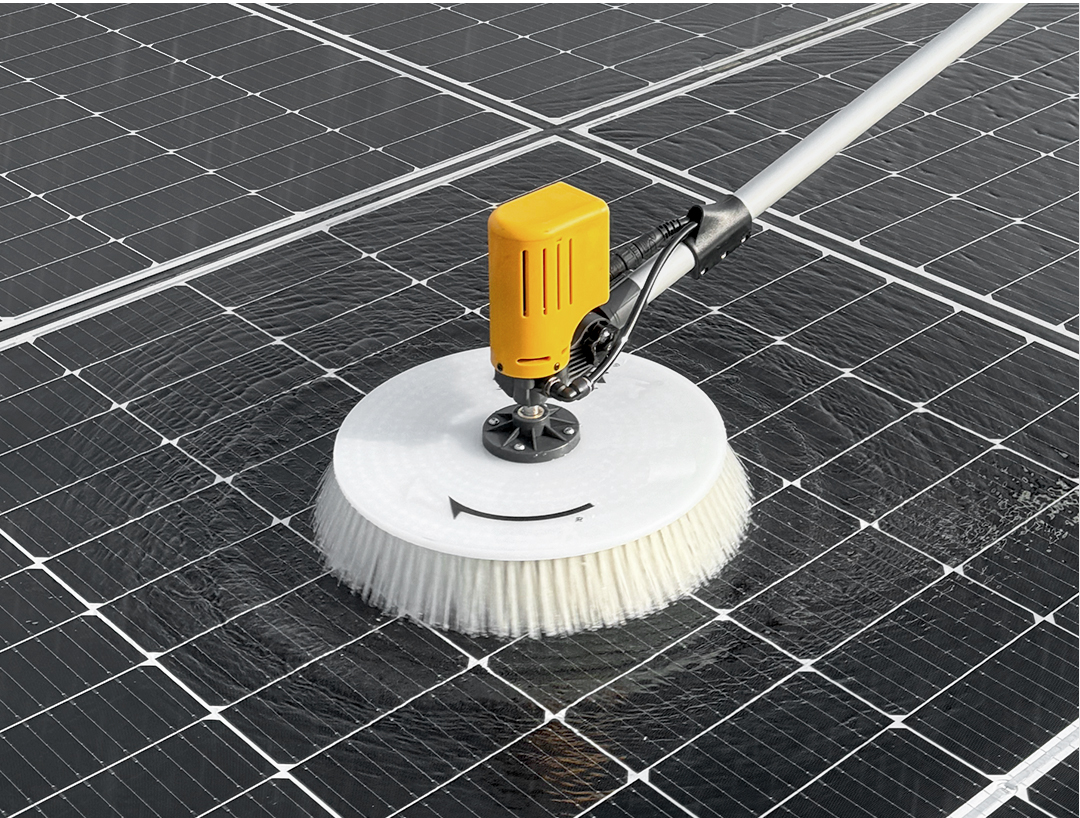

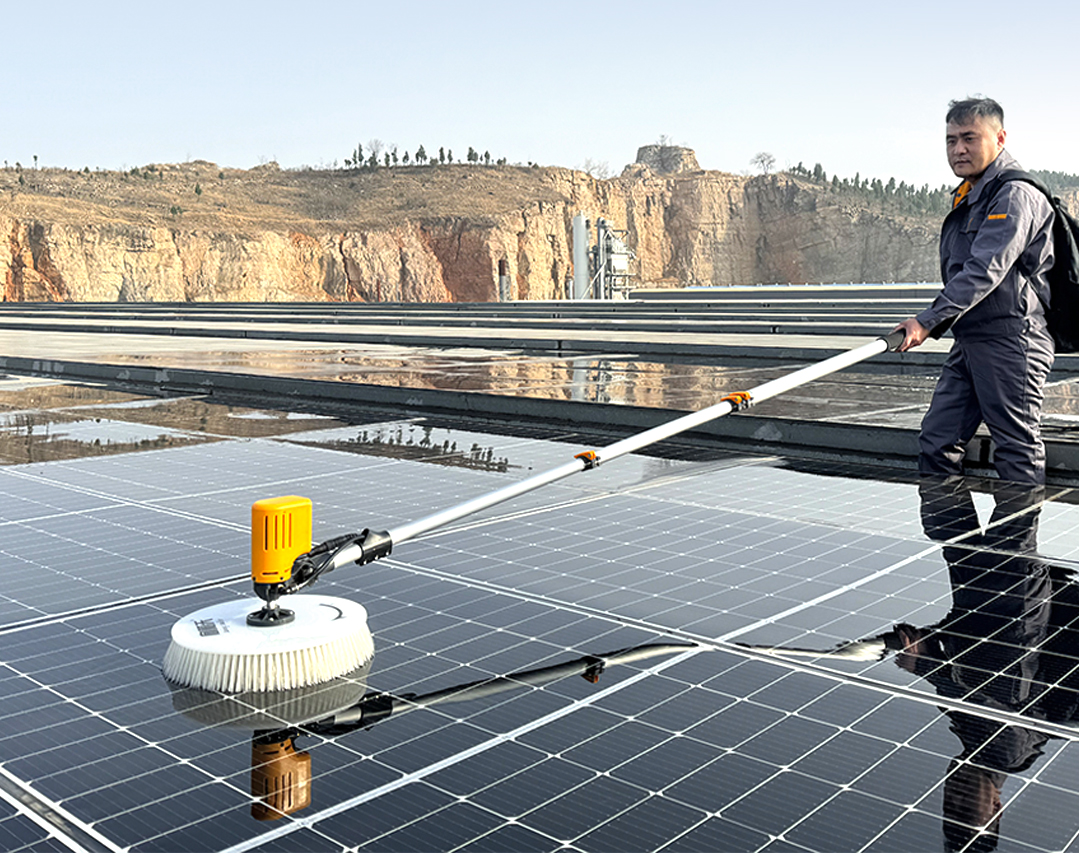

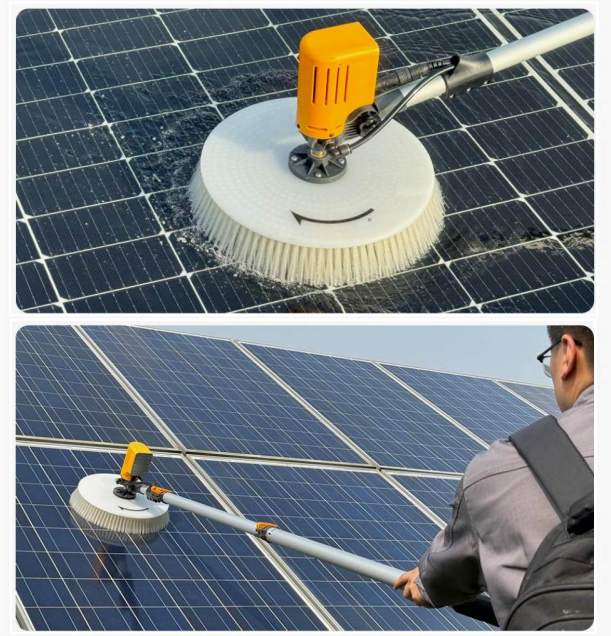

Product Display

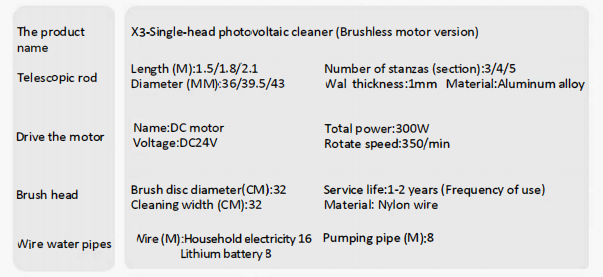

Specification

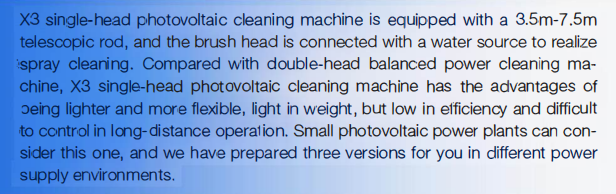

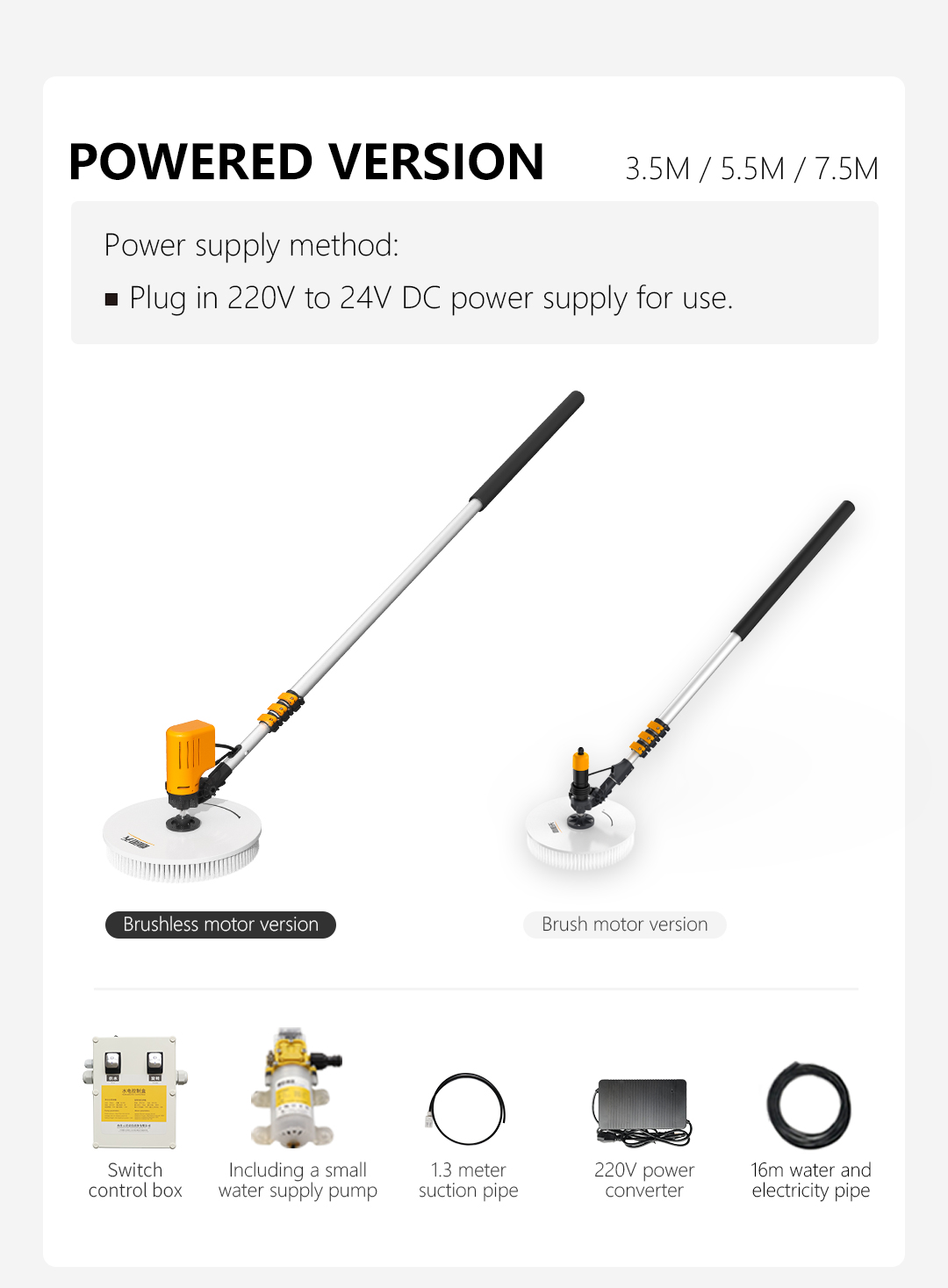

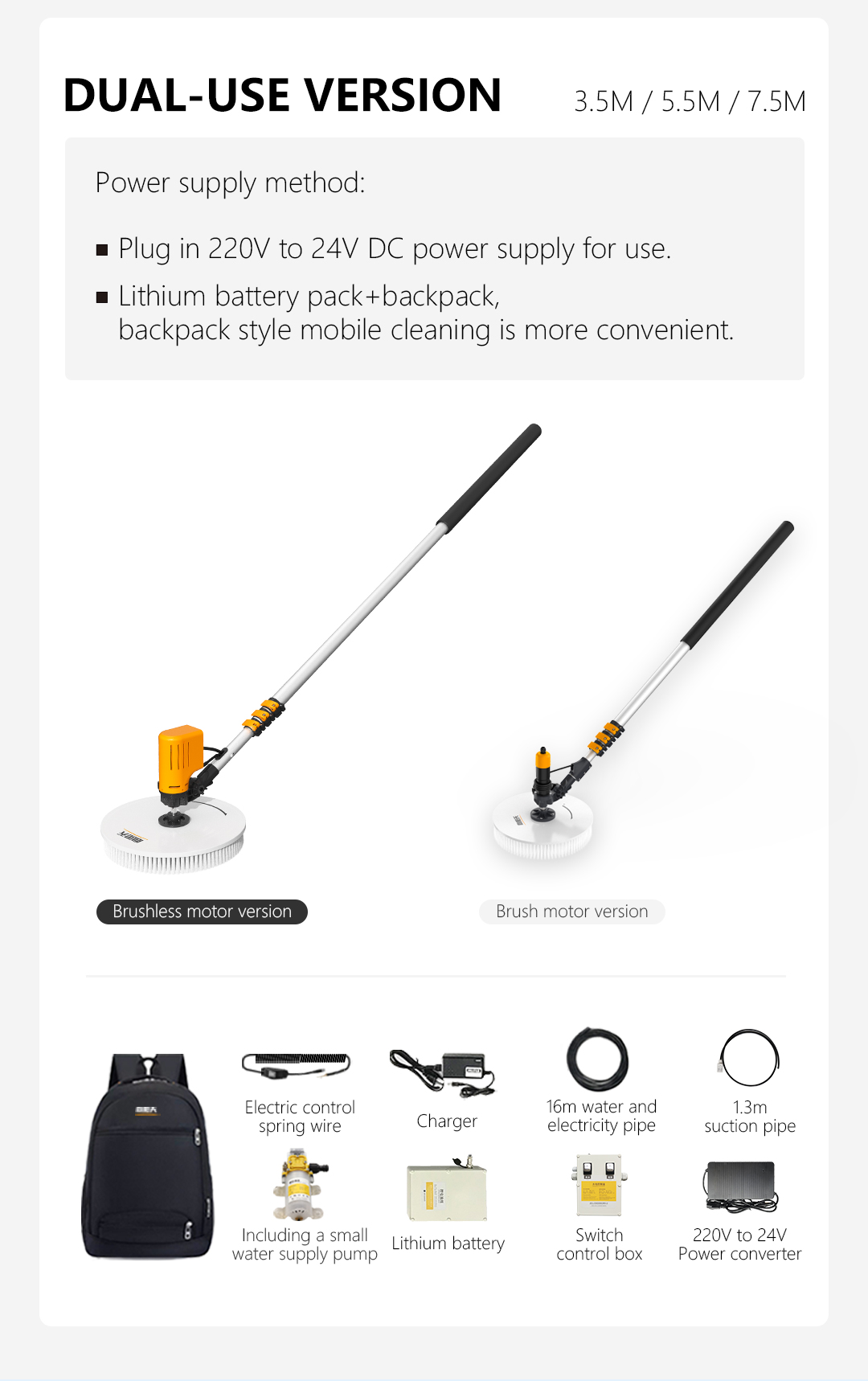

Power Supply Version

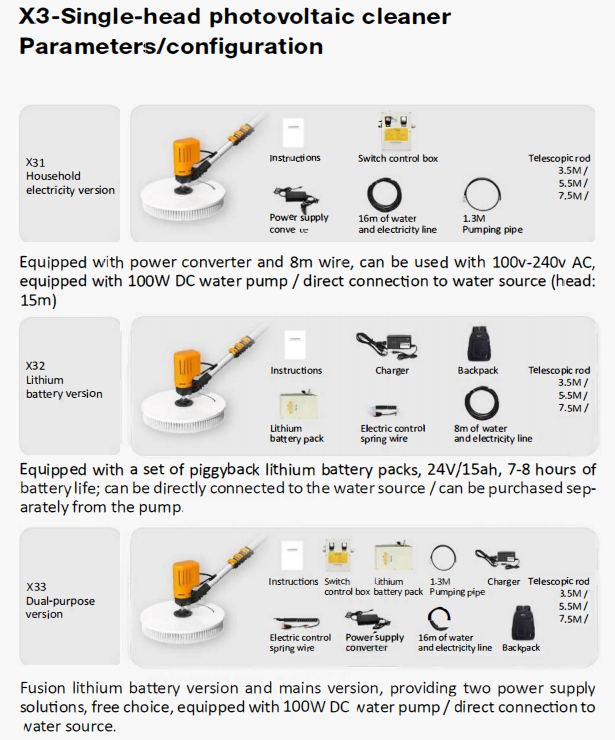

Product parameter

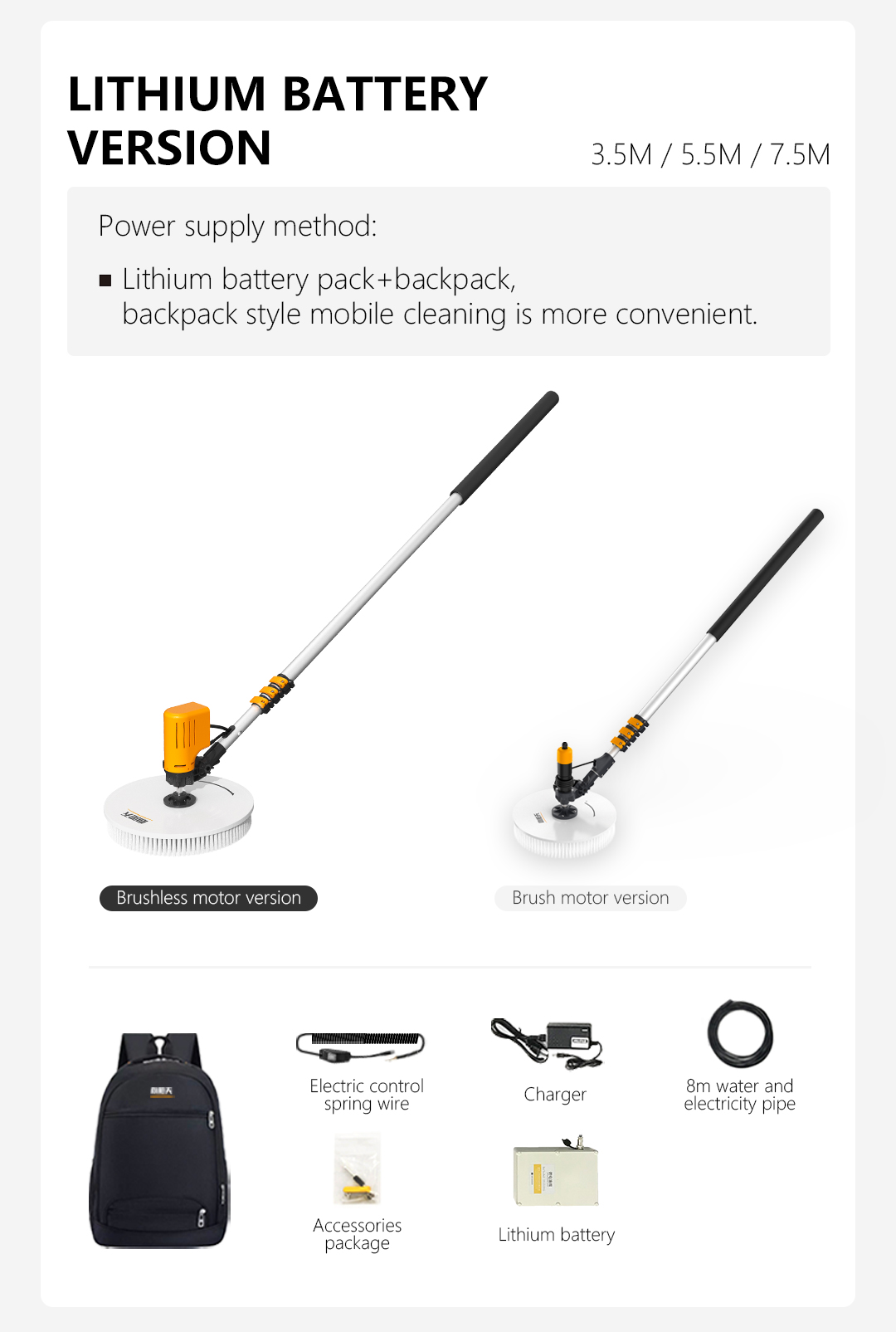

Powered versionLithium battery versionDual-use version
Battery life
4-5h4-5h
Charging time
8-10h8-10h
Lithium battery voltage
24v24v
Lithium battery capacity
26ah26ah
Wire length16m8m16m
Water pipe length8m
Motor voltage24V
power of motor120W
Motor speed320r/min
Cleaning width30cm
Brush materialNew nylon yarn
Water pump parameters24V/100W
Power supply parameters100-240V AC to 24V DC
Telescopic rod parameters
texture of woodaluminium alloy
3.5m telescopic rodShorten the size 158cm/3 knots
5.5m telescopic rodReduce the size 183cm /4 knots
7.5m telescopic rodShorten the size 201cm/5 knots
Packing sizeLength * width * height (cm)weight (kg)
3.5m rod body packaging158*10*102.8
5.5m rod body packaging183*10*103.4
7.5m rod body packaging201*10*104.5
Commercial power version box packaging46*38*278.5
Box packaging of lithium plate46*38*279.8
Dual-purpose box packaging46*38*385
* Note: The product is packaged in split type with rod body and box body, which may lead to two deliveries;

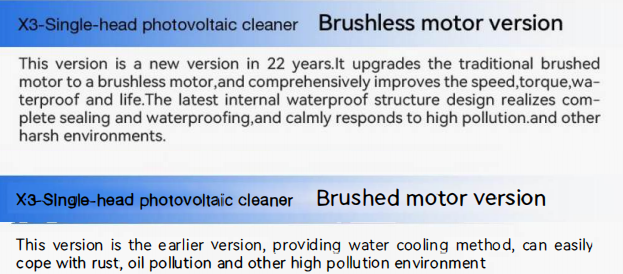

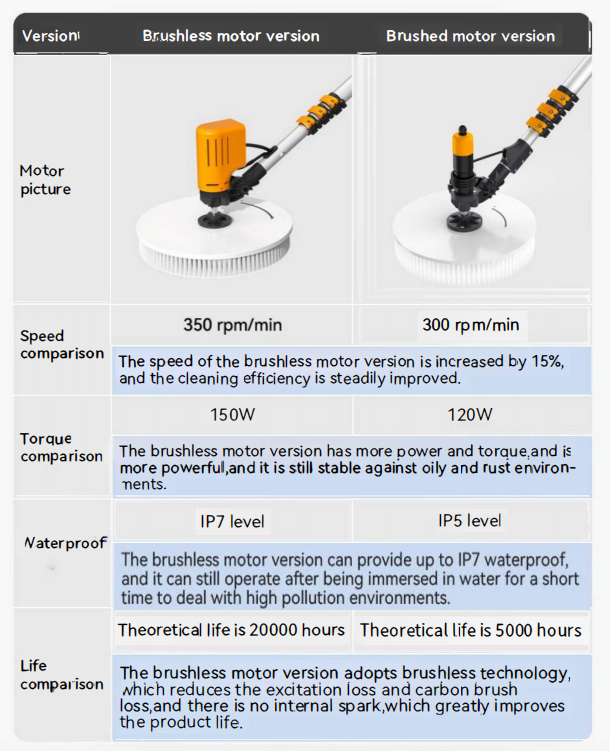

Brushless motor version adopts brushless technology,which reduces excitation loss and carbon brush loss,

and has no spark inside,good stability and greatly improves product life. Manufacturing Technique

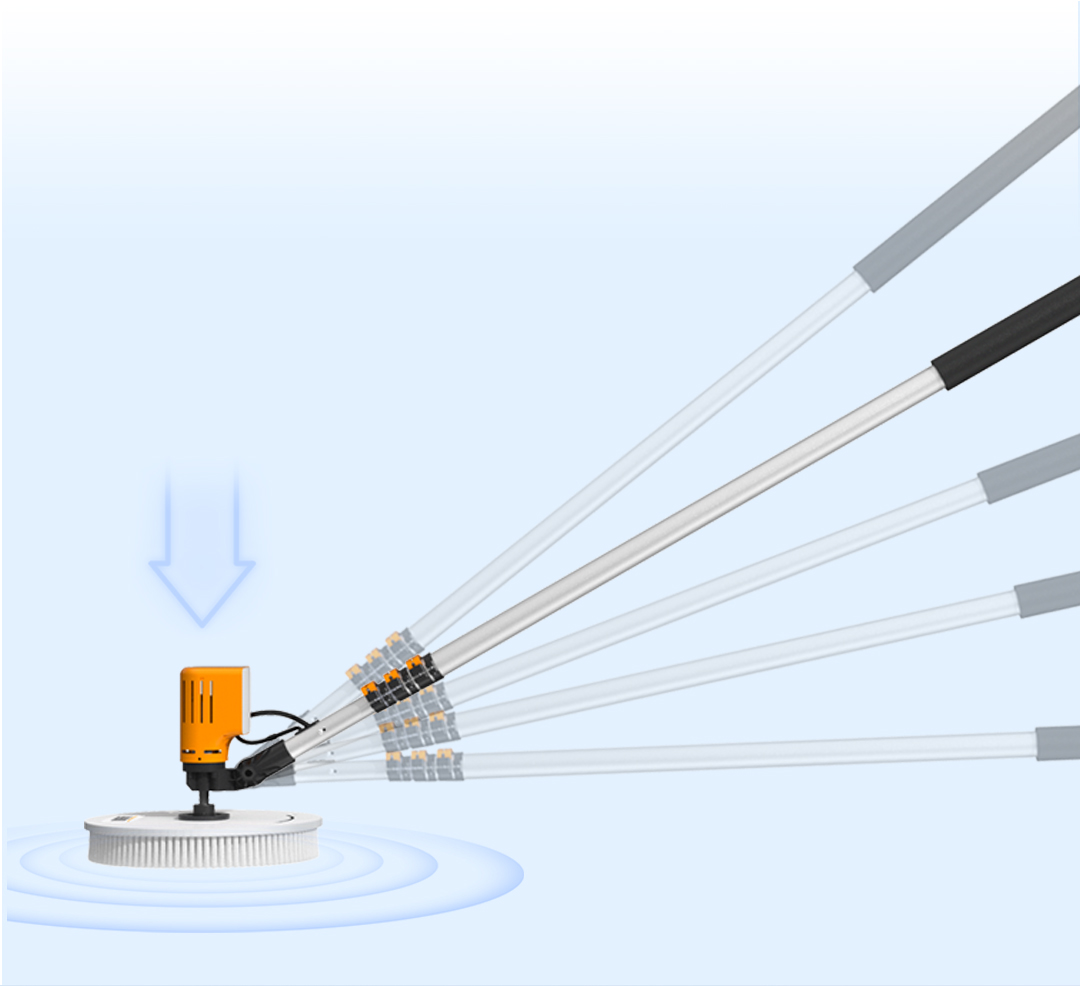

Angle adaptation Brush head does not deviate During cleaning, a certain range of self-adaptive brush head angles can be


 provided according to the angle of the photovoltaic panel, and the self-adaptive angle range can be adjusted.

The brush head is completely attached to the photovoltaic panel, so that the force is uniform, and it is not easy to deviate so it is better to control.

Arbitrary telescopic length Up to 7.5 meters long The telescopic rod adopts the locking buckle structure for arbitrary telescopic


 locking, providing three lengths of up to 3.5m/5.5m/7.5m, which can be easily cleaned from the foot to a long distance,

and the vertical photovoltaic panel array can be cleaned for up to 4 rows;(lf you need to customize a longer

telescopic rod, please contact customer service.)

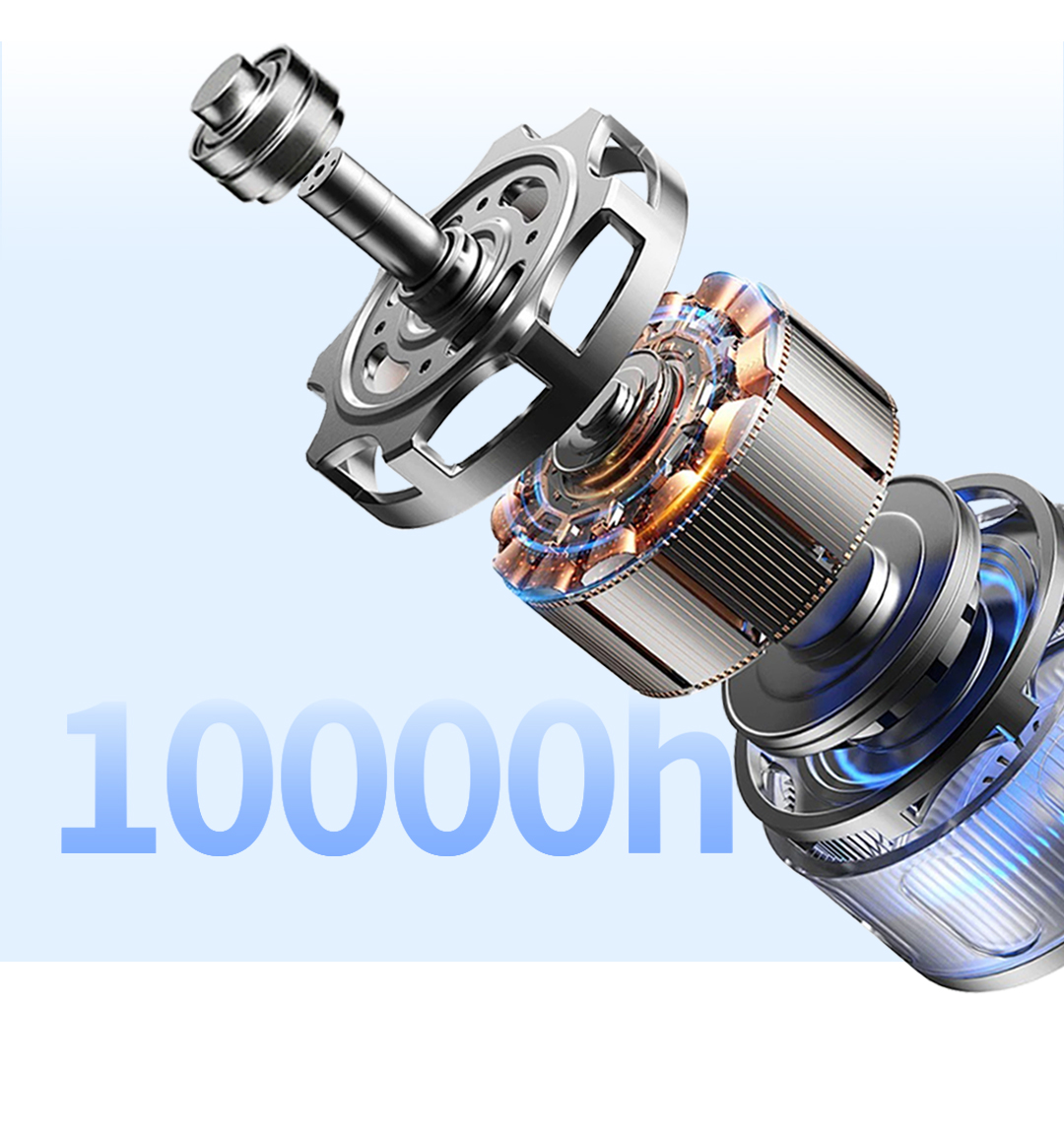

Pure copper brushless motor, more durable




More durable than ordinary brush motor, with a theoretical life of more than 10000 hours; At the same time,

the motor itself has high dustproof and waterproof performance, and the dusty environment can be guaranteed not to be affected;






The whole machine is waterproof design, can be cleaned even in rainy days

to cope with the harsh environment of outdoor cleaning and the summary of product practice, the waterproof performance of

the whole product can greatly improve the service life.Therefore, this product adopts export-grade waterproof buttjoint and brushless

waterproof motor. At the same time, the motor adopts integrated waterproof structure, which prevents water from soaking short circuit

and oxidation rust, and is still reliable on rainy days.



Company Introduction

01 门头.png

03 办公室.jpg

          Dongguan Zelv Electronic Technology Co., Ltd., a national high-tech enterprise headquartered in Dongguan, China, is a pioneering leader in solar energy innovation. Specializing in the design and production of advanced solar cleaning brushes, solar lifters, and solar mounting systems, we are committed to driving global sustainability through cutting-edge technology.

         Zelv X3 Solar Panel Cleaning Brush is engineered to deliver unmatched efficiency and durability for photovoltaic maintenance. Featuring a telescopic aluminum alloy rod (3.5M7.5M, 35 sections), it combines lightweight portability with robust strength, enabling safe, easy access to panels at varying heights. The 300W DC motor (24V, 350 RPM) ensures powerful, consistent scrubbing to remove stubborn debris without damaging surfaces, while its energy-efficient design minimizes operational costs.



        At its core lies a 32cm-diameter brush head with 65cm cleaning width, crafted from high-grade nylon wire for gentle yet thorough cleaning. Built to last over 5 years, the brush resists wear and corrosion, reducing long-term replacement expenses. The telescopic rods adjustable length (3643mm diameter, 1mm wall thickness) adapts seamlessly to diverse installations, from residential rooftops to commercial solar farms.



      Why Choose the X3? Maximize cleaning efficiency, slash labor time, and protect panel integrity with a tool designed for precision and endurance. Ideal for harsh environments, its ergonomic design and powerful motor ensure effortless operation, boosting energy output by up to 25% through regular maintenance. Invest in the X4where innovation meets reliabilityfor a smarter, cost-effective solar care solution.
