Zelv X5 Roller Type Solar Panel Cleaning Brush

Zelv X5 Roller Type Solar Panel Cleaning Brush


Zelv X5 Solar Cleaning Brush Features:


1. Telescopic rod

lLength:3.5M/ 5.5M/ 7.5M

lDiameter(MM): 40MM

lNumber of stanzas (section):3/4/5

lWall thickness:1MM

lMaterial: Aluminum alloy



2. DC Motor

lTotal power:150W

lRotate speed:700r/min

lVoltage:DC24V



3. Brush Head

lBrush Width: 60CM

lUsage Time: over 5 years

lMaterial: Nylonwire

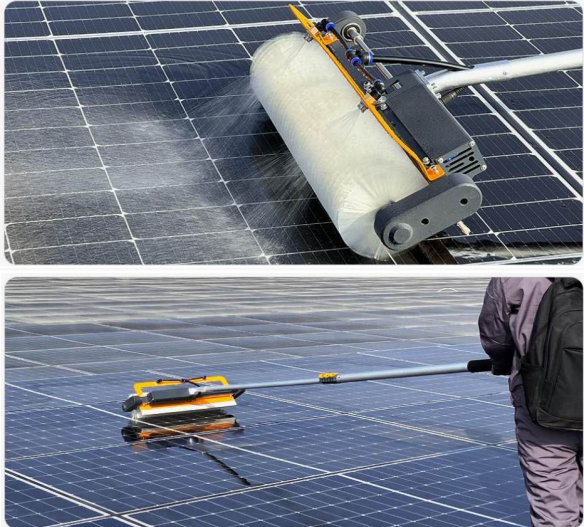

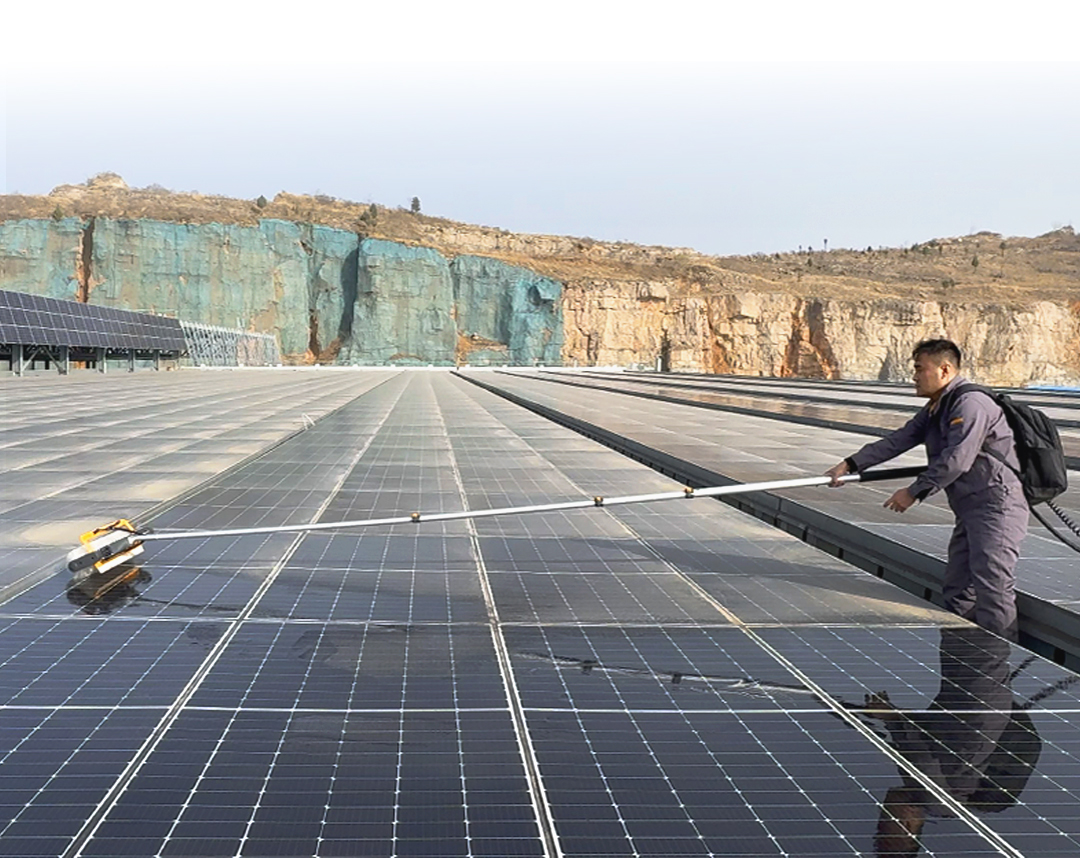

Product Display

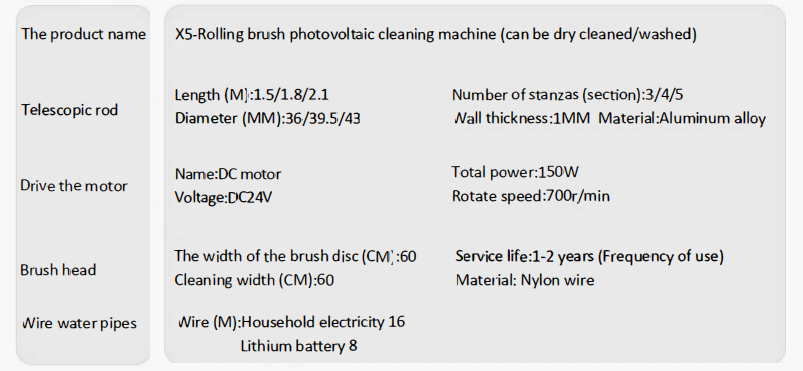

Specification

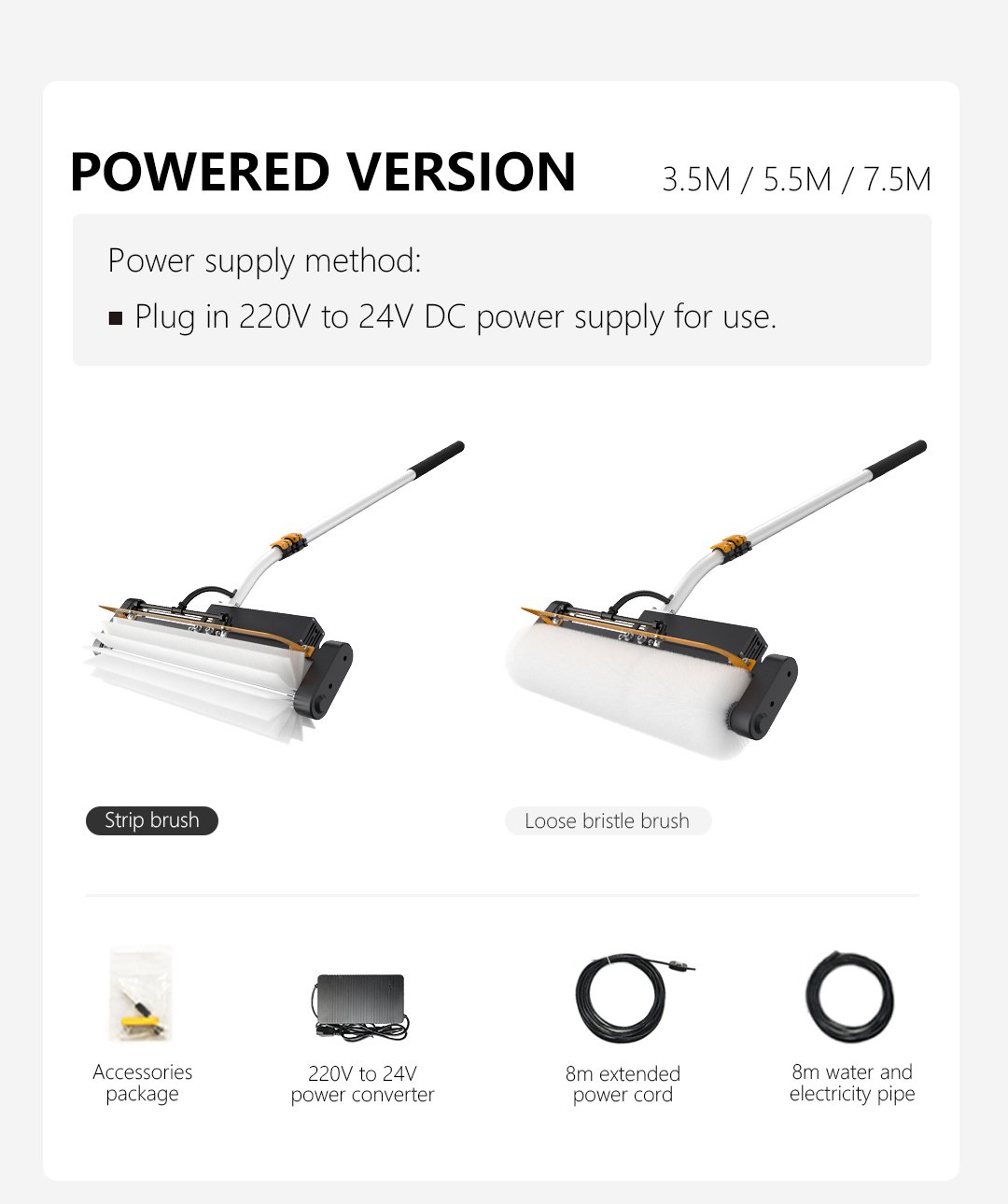

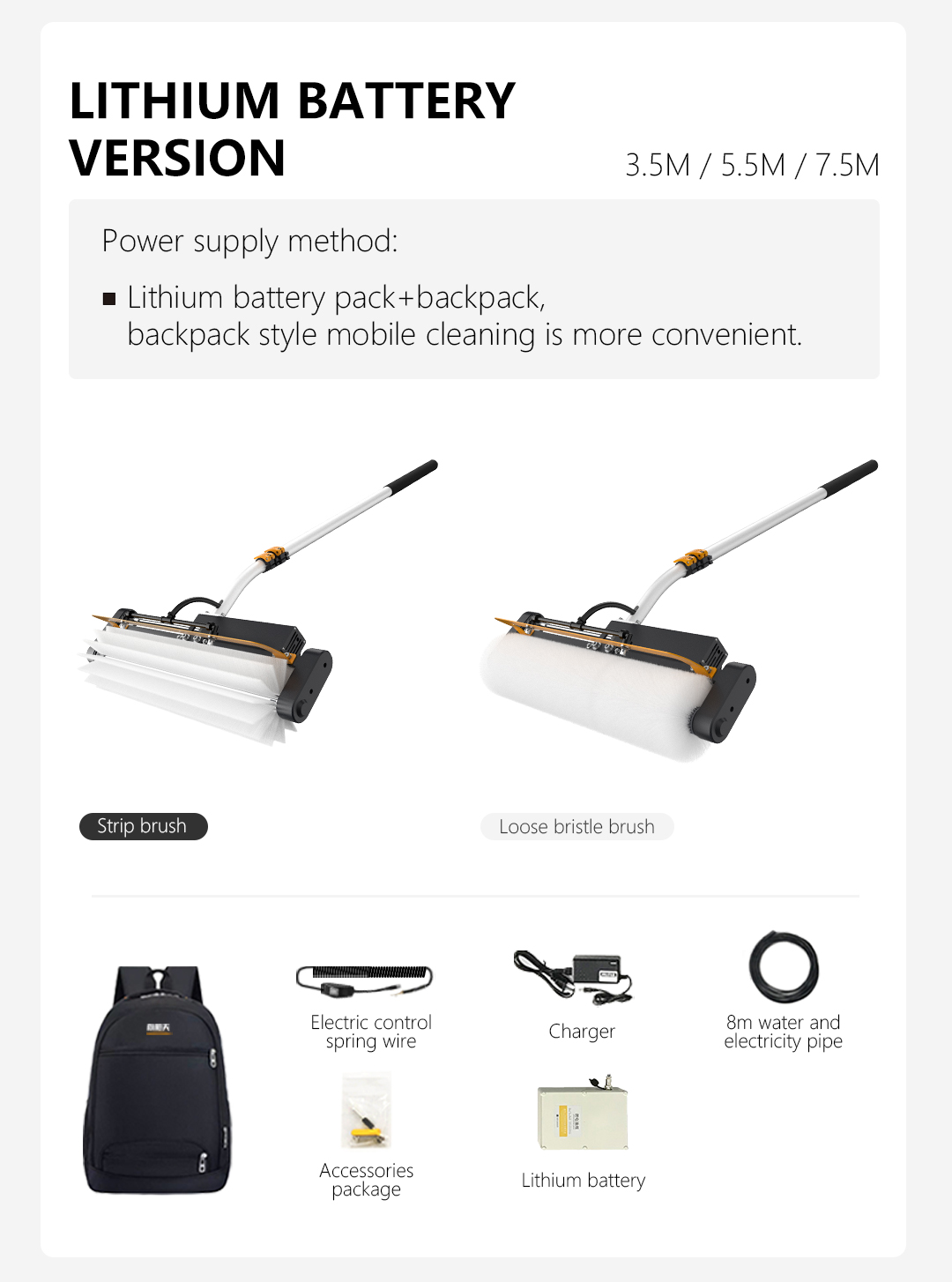

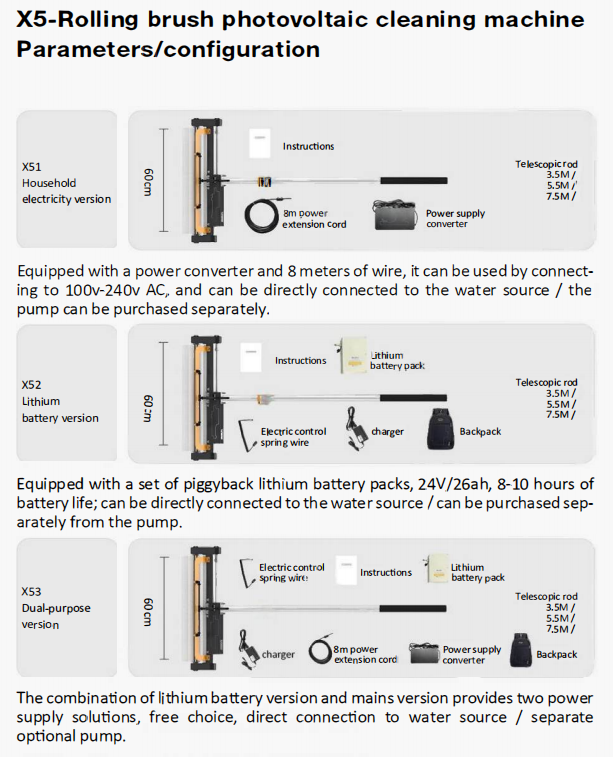

Power Supply Versions








Product parameter


Powered versionLithium battery versionDual-use version
Battery life---4-5h4-5h
Charging time---8-10h8-10h
Lithium battery voltage---24v24v
Lithium battery capacity---26ah26ah
Wire length16m8m16m
Water pipe length20m
Motor voltage24V
power of motor150W
motor speed700r/min
Cleaning width60cm
Brush materialNew nylon yarn
Telescopic rod parameters
Texture of woodAluminium alloy
3.5m telescopic rodShorten the size by 157cm/3 knots
5.5m telescopic rodShorten the size by 182cm/4 knots
7.5m telescopic rodShorten the size by 200cm/5 knots

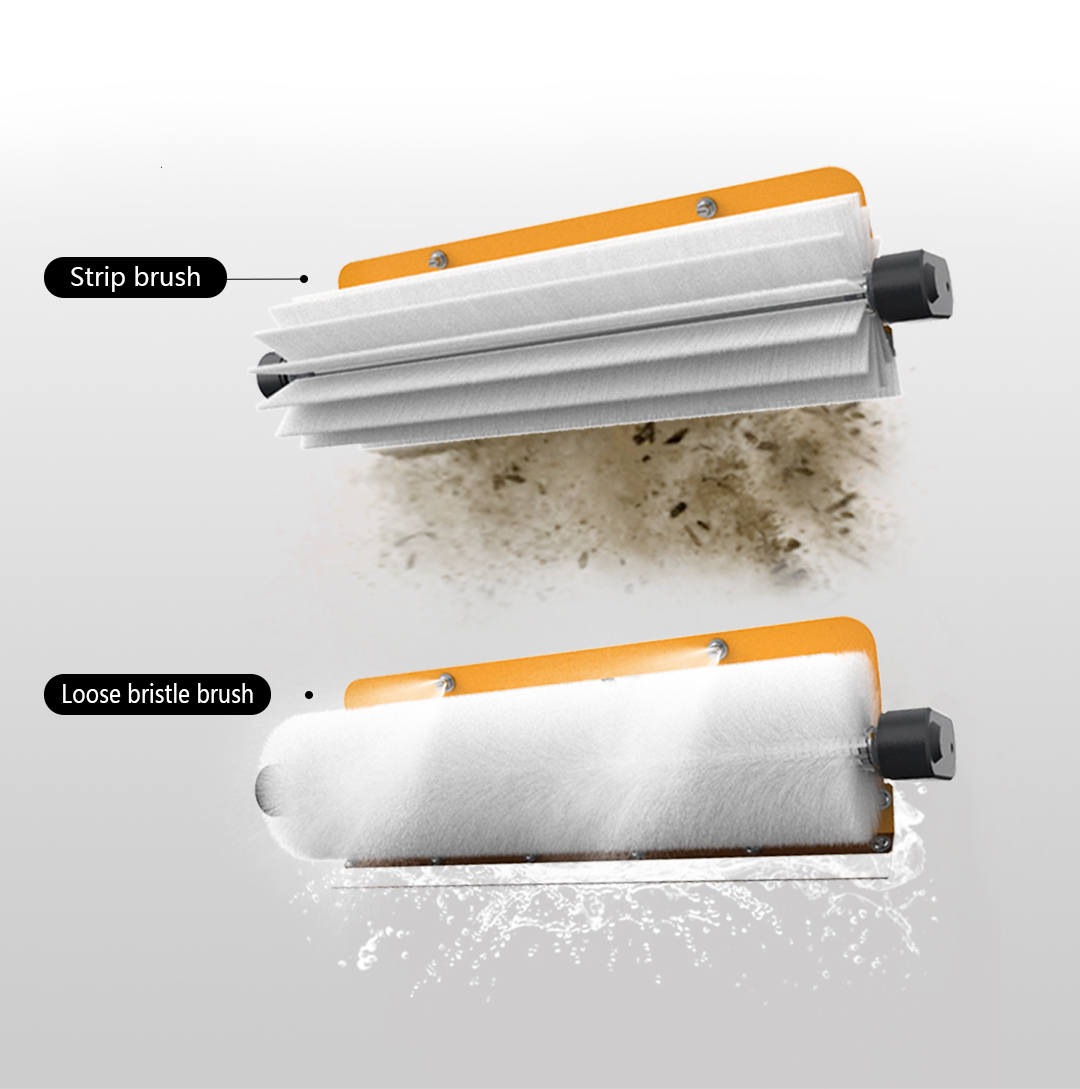

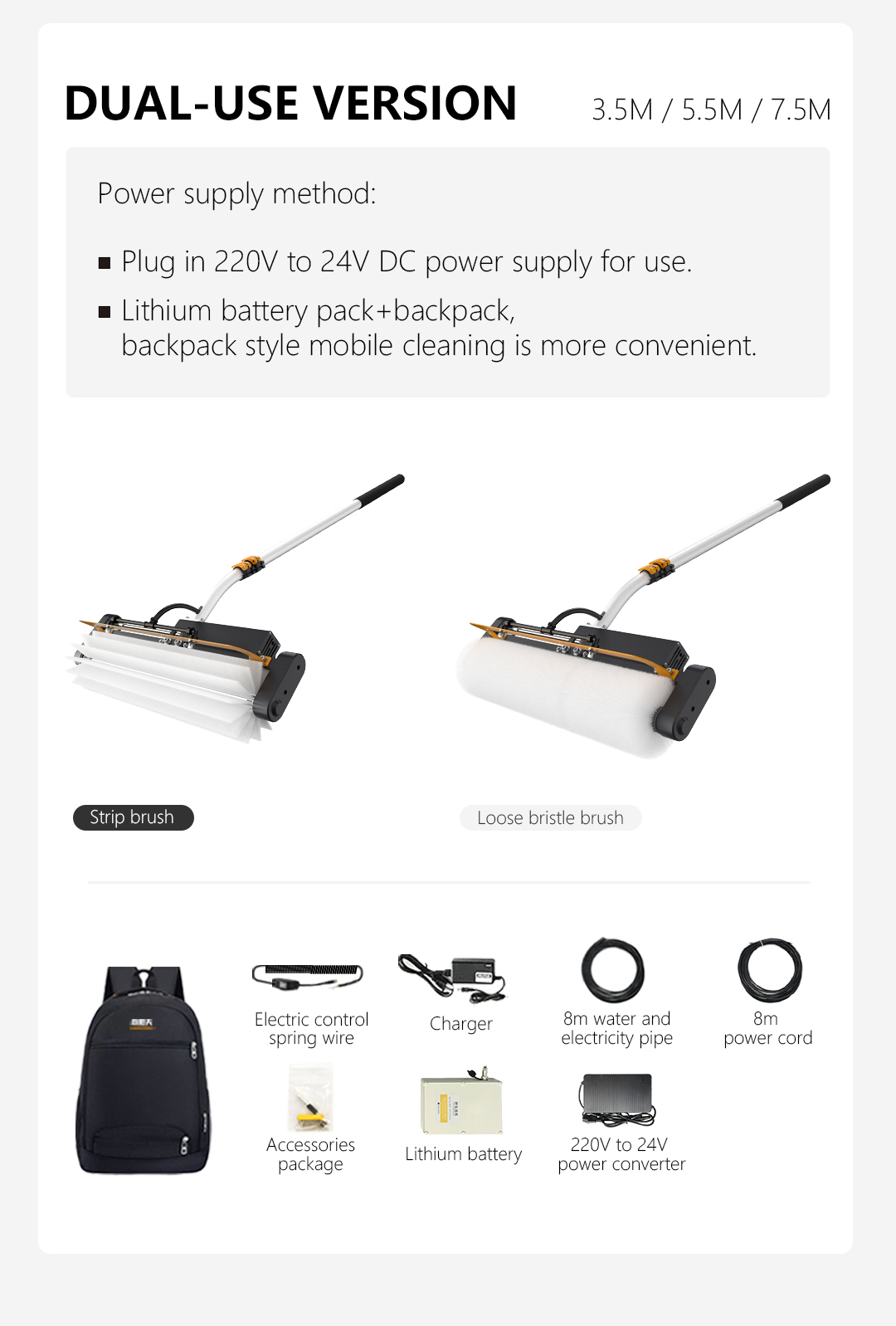

Brush Type




Strip brush - lt is composed of compact rows of bristles, which can constantly flap and raise dust like a broom,
so the effect of dry cleaningdust is remarkable;

Loose bristle brush - The uniform distribution of scattered bristles can driveaway sewage like a wiper and reduce
the secondary pollution of sputtering, so it is more suitable for water washing;

The uniform distribution of scattered bristles can drive away sewage like a wiper and reduce the secondary
pollution of sputtering, so it is more suitable for water washing; Generally speaking, water washing is more
thorough than dry cleaning, and you can also choose according to your own water environment.
Brush head replacement can be completed quickly in 2 minutes.

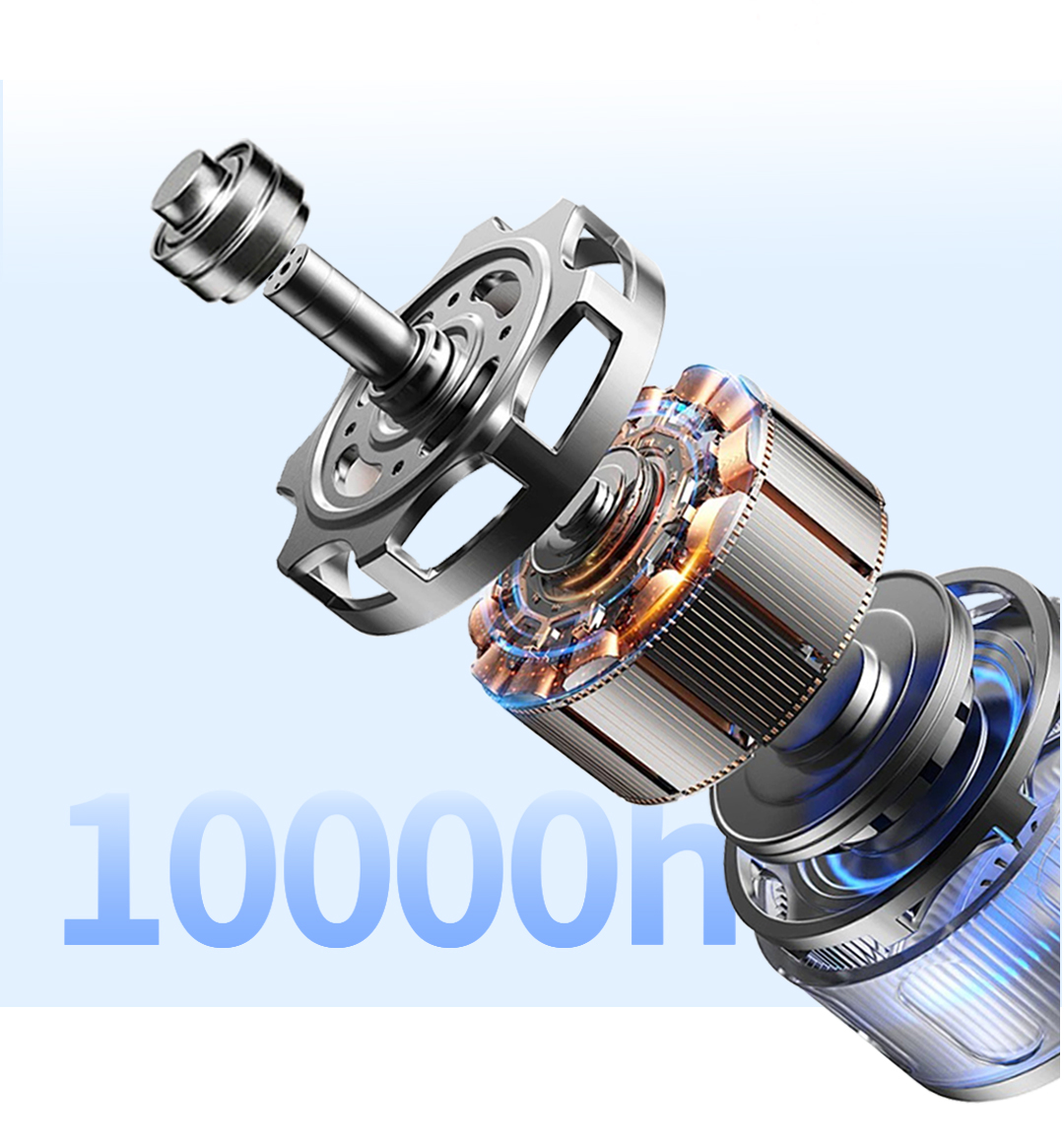

Pure copper brushless motor,more durable

More durable than ordinary brush motor, with a theoretical life of more than 10000 hours; At the same time, the motor itself has high dustproof
 and waterproof performance, and the dusty environment can be guaranteed not to be affected;
Principle of popular science: Brushless motor is electronically commutated without carbon brush;
Brush motor commutates through carbon brush; Brushless motor is electronically commutated without carbon brush;
Motor difference: Brushless motor has high efficiency, small size, no carbon brush wear and long life, but high cost;
Brushed motor has low efficiency, large volume, worn carbon brush, short life, but low cost.

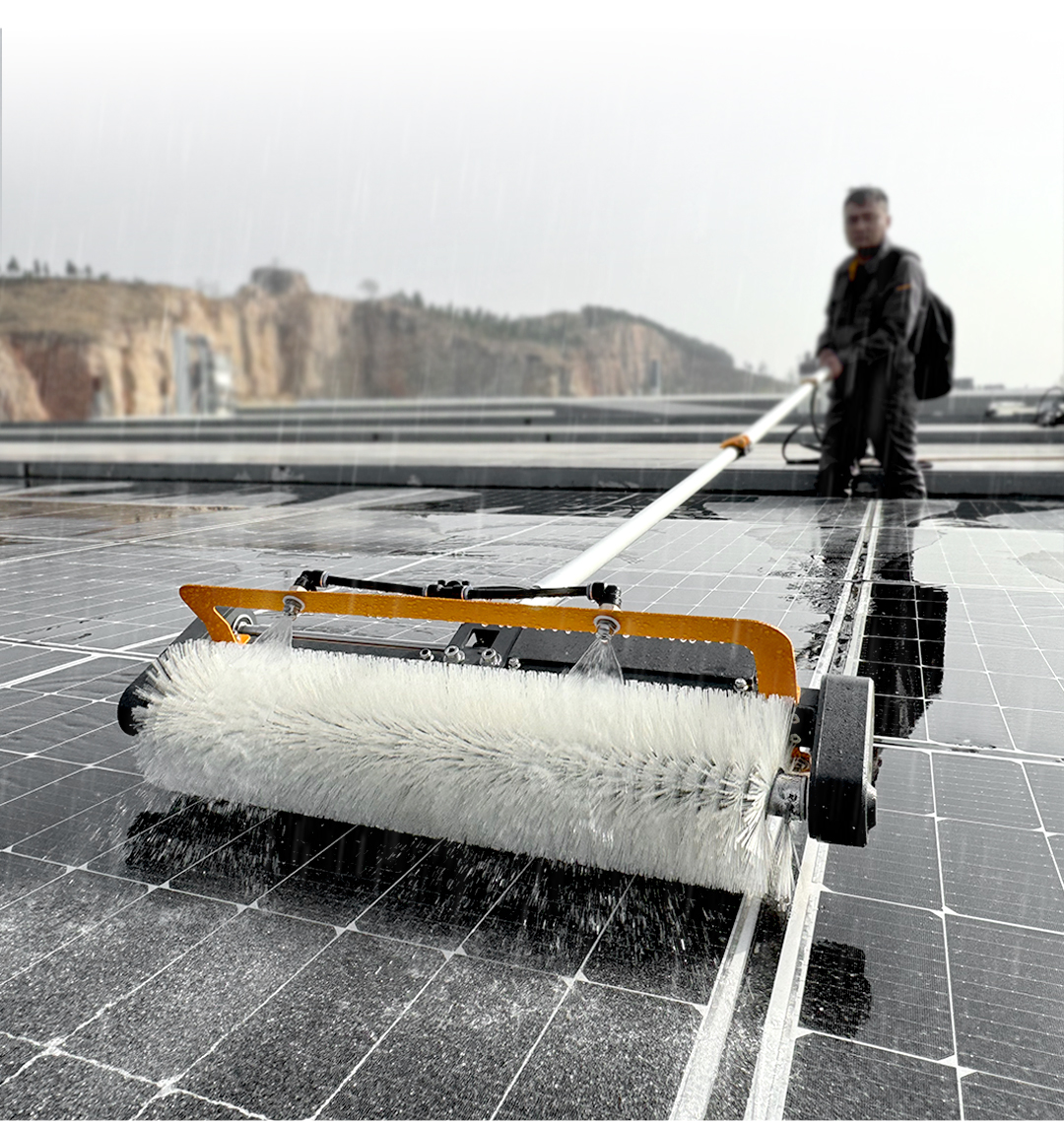

The whole machine is waterproof design, can be cleaned even in rainy days to cope with the harsh environment of outdoor cleaning
and the summary of product practice, the waterproof performance of the whole product can greatly improve the service life.
Therefore, this product adopts export-grade waterproof buttjoint and brushless waterproof motor. At the same time,
the motor adopts integrated waterproof structure, which prevents water from soaking prevents short circuit and oxidation rust,
and is still reliable on rainy days.







Company Introduction

01 门头.png

03 办公室.jpg

         Dongguan Zelv Electronic Technology Co., Ltd., a national high-tech enterprise headquartered in Dongguan, China, is a pioneering leader in solar energy innovation. Specializing in the design and production of advanced solar cleaning brushes, solar lifters, and solar mounting systems, we are committed to driving global sustainability through cutting-edge technology.

          Zelv X5 Solar Cleaning Roller Brush delivers precision and power for maintaining photovoltaic panels at peak performance. Its telescopic aluminum alloy rod (3.5M7.5M, 35 sections) combines lightweight durability with adjustable reach, ensuring easy access to panels on rooftops or large-scale solar farms. The robust 40mm-diameter rod (1mm wall thickness) guarantees stability across extended lengths, ideal for diverse installation environments.

         Driven by a 150W DC motor (24V, 700 RPM), the X5 achieves rapid, high-speed scrubbing to dislodge stubborn dirt and debris without compromising panel integrity. The 60cm-wide brush head, crafted from durable nylon wire, ensures gentle yet thorough cleaning across surfaces, with a lifespan exceeding 5 years to minimize replacement costs. This high-efficiency design maximizes coverage while reducing energy consumption, making it ideal for frequent maintenance.

         Why Choose the X5? Boost cleaning productivity with unmatched speed and adaptability. Its ergonomic telescopic design cuts labor time, while the corrosion-resistant materials withstand harsh weather conditions. Perfect for residential and commercial use, the X5 enhances energy output by up to 20% through consistent cleaning, safeguarding your solar investment. Choose innovation, reliability, and long-term savingsall in one compact, powerful tool.
